The Site Connection is used to tell I5 how to connect to the transceivers or controllers at an interrogation site. I5 uses the information in the Specifications section to import the current site configuration for the selected interrogation site, which includes the transceiver/controller type and ID and the antenna groups and IDs. I5 needs to know the type of transceiver/controller so that it can send the correct commands to download from internal memory.
I5 can connect to any device through a serial port or through an internet connection. If a site or device is on a network (wired, cell or satellite) and can be connected to through an IP address, I5 can connect to it and download data remotely.
To Create, Edit or Delete a Site Connection, click
and select Site Connections.

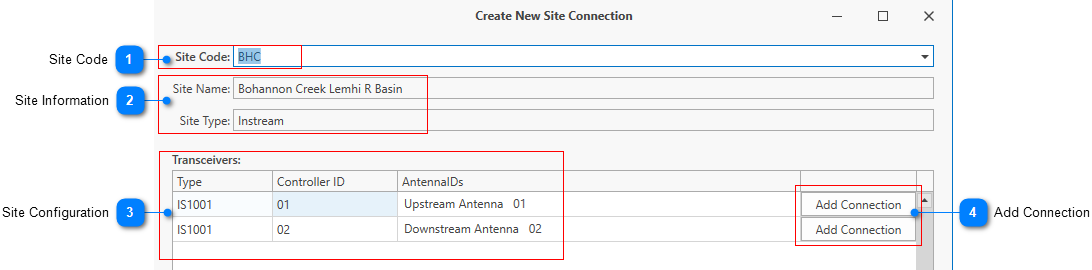

Create a New Site Connection
•Click the New button on bottom left.
•Search or browse to find and select the interrogation Site Code.
•The transceiver/controller and antennas will be listed in the grid below (Note: if the transceiver type is incorrect, contact PTAGIS to get it updated).
•Click the Add Connection button for each transceiver/controller to configure the connection settings to the transceiver.
.png)
.png){kind=small}
|
Site Information |
|
|
The Site Name and Site Type will be filled in automatically after the Site Code is selected. |
.png){kind=small}
|
Site Configuration |
|
|
The Transceiver and Antenna configuration information will be filled in automatically from the site Specifications after the Site Code is selected |
.png){kind=small}
|
Add Connection |
|
|
Click here to configure the connection to the device. If the Transceiver is a multiplexor or controller there will be one connection for that device. If there are multiple single transceivers, you will need to add a connection for each of them. |
.png){kind=small}
Edit a Site Connection
•Select the Site Connection and click the Edit button in the bottom left or double-click the Site Connection to open the Edit Site Connection screen.
•Click Edit Connection to edit any of the transceiver connection settings.
•Click Save to finalize your changes.
Delete a Site Connection
•Select the Site Connection and click the Delete button in the bottom left.
